Versatility of Perforated Sheets: From Design to Functionality
April 3, 2024

Versatility of Perforated Sheets: From Design to Functionality

What are Perforated Sheets?

Perforated sheets are metal or plastic sheets that have been punched or laser-cut with a pattern of holes. These holes can be arranged in various configurations, from simple grids to intricate designs. The size, shape, and spacing of the holes all play a crucial role in determining the functionality of the perforated sheet.

These sheets can be used for a variety of purposes because of the pattern of holes punched in them in different shapes. These sheets can be manufactured of brass, stainless steel, galvanized steel, or other materials, depending on the intended usage.

Depending on the type of holes punched in the perforated sheet, they can be used for a variety of purposes, such as heat dissipation, noise reduction, and ventilation in an environment. Because of their unique appearance, they occasionally find their way into decorative items.

Applications of Perforated Sheets:

Perforated sheets are used in many different industries; some of the more popular ones are as follows:

  1. Architecture and Construction: Perforated sheets are used for architectural facades, sunscreens, sound barriers, and decorative elements. They can also be found in safety cages for construction sites.
  2. Car Grilles: Perforated grilles allow cool air to enter the engine compartment while preventing debris and larger objects from entering. They also play a role in the car’s overall aesthetics.
  3. Furniture Design: Perforated sheets can be incorporated into furniture for both aesthetics and functionality. Chairbacks, cabinet doors, and lampshades can utilize perforated designs to create a modern look while enhancing ventilation.
  4. Household Appliances: Perforated drum covers in washing machines and dryers allow for proper airflow, preventing moisture buildup and ensuring efficient drying.
  5. Food and Beverage Industry: Perforated sheets find use in sieves, sifters, and drying trays for various food processing applications. They also play a role in ventilation systems within food preparation areas, ensuring proper hygiene and air quality.
  6. Filtration Systems: Perforated sheets are employed in filtration systems to separate liquids and gases during various stages of oil and gas processing. The specific hole pattern determines the size and type of particles that can pass through.
  7. Safety Grates: Similar to construction applications, perforated steel grates provide safe and secure walkways on platforms and rigs, especially in offshore environments where corrosion resistance is critical.

Perforated sheet metals can therefore be utilized in many different contexts and have a broad range of applications.

Pros and Cons of Perforated Sheets:

PROSCONS
1. Do more with less: Perforated sheets offer the strength of solid sheets with less weight, saving on material costs and transportation.1. Price tag to match: Perforated sheets can be more expensive than solid sheets due to the additional processing involved.
2. Breathe easy: They excel at controlling airflow and filtering particles, improving efficiency in ventilation and filtration systems. 2. Cleaning challenge: Depending on the hole size and pattern, they can be more difficult to clean, especially for filtration applications.
3. Built to last: Inherit the strength and durability of the base material, making them ideal for demanding environments. 3. Mind the gaps: Perforations can weaken the overall structural integrity compared to solid sheets, requiring careful design and load calculations.
4. Fashion meets function: Add a modern and stylish touch to any project, with various hole patterns offering visual interest and potential privacy. 4. Not for the faint of wallet: While lighter weight saves on transportation, the initial cost might be higher. Consider the long-term benefits like weight reduction for large projects.
5. Adaptable to any need: Highly customizable – hole size, shape, and spacing can be tailored for a wide range of applications. 5. Maintenance matters: Choose the right material and hole pattern for easier cleaning, especially in applications where debris or dust accumulates.

Perforated Sheet Types and their Uses Explained:

  1. Round Hole Perforated Sheet: The most common type, featuring evenly spaced circular holes. Offers excellent airflow and filtration efficiency. Used in ventilation systems, air filters, and sifting applications. Read more
  2. Oblong Hole Perforated Sheet: These sheets have elongated oval-shaped holes. Often used for applications requiring directional airflow control, like in drying trays or some speaker covers, or sifting based on particle size in processes like food manufacturing. Read more
  3. Capsule Hole Perforated Sheet: These sheets have teardrop-shaped holes, offering a balance between airflow and maintaining structural integrity. Common in applications like speaker covers or machine guards where some level of particle protection is needed while allowing sound to pass through. Read more
  4. Rectangular Hole Perforated Sheet: Sheets with precise rectangular perforations. Used for applications requiring specific size separation in processes like sieves or sorting machinery, ventilation with a modern aesthetic in architectural facades or furniture design, or light filtering in sunscreens. Read more
  5. Hammer Mill Screen: Heavy-duty perforated sheets with large, reinforced holes. Used in grinding mills to separate desired particle sizes from larger materials in industries like mining or agriculture. Read more
  6. Punch Plates: Sheets with various hole patterns depending on their intended use. Often used in construction for ductwork connections (connecting different sections of ventilation ducts), cable management (providing designated areas for routing electrical cables), or temporary walkways (lightweight and allowing light/air to pass through). Read more
  7. Stainless Steel Perforated Sheet: Offers superior corrosion resistance and strength, making them ideal for demanding environments like food processing (where hygiene is crucial) or outdoor applications where weather resistance is important. Read more
  8. GI (Galvanized Iron) Perforated Sheet: Provides good corrosion resistance at a lower cost than stainless steel. Suitable for many indoor applications like furniture design or ventilation systems, or temporary outdoor use where weather exposure is limited. Read more
  9. Mild Steel Perforated Sheet: The most economical option, but susceptible to rust. Often used in dry environments like machine guards storage containers, or applications where cost is a major factor. Read more
  10. Decorative Perforated Sheet: Sheets with intricate or artistic hole patterns. Used for architectural facades (adding a modern touch to building exteriors), railings (providing visual interest while maintaining safety), or furniture design (offering a unique aesthetic element). Read more

Choosing the Right Perforated Sheet:

When selecting a perforated sheet, consider the following factors:

  1. Material: Choose a material that suits the application’s needs in terms of strength, corrosion resistance, and weight. Aluminum is lightweight and rust-resistant, while steel offers superior strength.
  2. Hole Pattern: The hole size, shape, and spacing will determine factors like airflow, filtration efficiency, and aesthetics. Consider the desired functionality when choosing a pattern.
  3. Sheet Thickness: The thickness of the sheet will influence its weight, rigidity, and ability to withstand loads. Thicker sheets are more structurally sound but also heavier.
  4. Cost: The additional processing can make them pricier than solid sheets.
  5. Cleaning: Depending on the hole pattern, cleaning can be more challenging.
  6. Structural Integrity: Perforations can weaken the overall structure, requiring careful design for load-bearing applications.

Conclusion:

In conclusion, Perforated Sheets are essential in many industries because they effectively manage airflow, filter out particles, and improve appearance in a variety of applications, from automotive to architecture. Perforated sheets remain essential even though issues like pricing, hole design, and material selection must be taken into account when choosing the right sheet. Their adaptability keeps influencing modern architecture and successfully addressing the changing demands of many industries.

Read More
admin0 commentPerforated Sheets, Uncategorized
Different Types of Flanges And Their Uses in Piping
February 27, 2024

Different Types of Flanges and Their Uses in Piping

Flanges play a critical role in piping systems by providing a means to connect valves, pipes, and other equipment. They come in various types and designs, each suited for specific applications based on factors such as pressure, temperature, and the nature of the conveyed fluid. Understanding the different types of flanges and their uses is essential for ensuring the integrity and efficiency of piping systems. In this comprehensive guide, we will explore various types of flanges commonly used in piping systems, along with their distinctive features and applications.

Mcneil Instrument offers an extensive selection of premium stainless steel flanges, all certified by BSI, catering to diverse industrial needs. Our flange varieties, including weld neck, slip-on, blind, and threaded flanges, are meticulously crafted to meet stringent standards and ensure optimal performance in various applications.

  1. Weld Neck Flanges

Weld neck flanges, also known as WN flanges, are characterized by their long tapered hub and a neck that is welded to the pipe. These flanges are designed to transfer stress from the flange to the pipe, making them suitable for high-pressure and high-temperature applications. The smooth transition from the flange’s hub to the pipe helps reduce turbulence and erosion, making weld neck flanges ideal for critical piping systems in industries such as oil and gas, petrochemical, and power generation.

Key Features:

  • Long tapered hub for smooth transition and reduced turbulence.
  • Welding neck for secure attachment to the pipe.
  • Designed to share stress with the connected pipe.

Applications:

  • High-pressure piping systems.
  • High-temperature applications.
  • Critical process lines in refineries, chemical plants, and power plants.
  1. Slip-On Flanges:

Slip-on flanges, as the name suggests, are designed to slip over the pipe and then be welded in place. These flanges feature a flat face or a raised face and are commonly used in low-pressure and low-temperature applications where ease of installation is important. Slip-on flanges are cost-effective and versatile, making them suitable for a wide range of industries and piping systems.

Key Features:

  • Easy to install, slip onto the pipe, and weld in place.
  • Available with flat face or raised face configurations.
  • Suitable for low-pressure and low-temperature applications.

Applications:

  • HVAC systems.
  • Water supply and drainage systems.
  • Low-pressure process piping.
  1. Threaded Flanges:

Threaded flanges are designed with internal threads that allow them to be screwed onto the pipe. These flanges provide a secure and leak-proof connection without the need for welding, making them ideal for applications where welding is not feasible or desired. Threaded flanges are commonly used in low-pressure and low-temperature piping systems, such as plumbing and water distribution networks.

Key Features:

  • Internal threads for easy attachment to the pipe.
  • No welding is required, providing a leak-proof connection.
  • Suitable for low-pressure and low-temperature applications.

Applications:

  • Plumbing systems.
  • Water distribution networks.
  • Low-pressure steam lines.
  1. Blind Flanges:

Blind flanges, also referred to as blanking flanges, are solid disks used to block off the end of a pipe or to seal a section of piping. These flanges feature no bore or opening and are typically installed at the end of a piping system or at a point where future expansion may be required. Blind flanges are commonly used in high-pressure applications and for flow testing purposes in pipelines.

Key Features:

  • Solid disk with no bore or opening.
  • Used to block off the end of a pipe or seal a section of piping.
  • Suitable for high-pressure applications and flow testing.

Applications:

  • End closures in piping systems.
  • Flow testing in pipelines.
  • High-pressure process lines.
  1. Socket Weld Flanges:

Socket weld flanges are designed for small-diameter, high-pressure piping systems where the pipe is inserted into the socket of the flange and then welded in place. These flanges provide a strong and reliable connection, making them suitable for applications such as hydraulic and steam lines. Socket weld flanges are commonly used in industries where high-pressure and corrosive fluids are encountered.

Key Features:

  • Socket for pipe insertion and welding.
  • Strong and reliable connection.
  • Suitable for small-diameter, high-pressure piping systems.

Applications:

  • Hydraulic systems.
  • Steam lines.
  • Chemical processing plants.
  1. Orifice Flanges:

Orifice flanges are specifically designed to accommodate orifice plates, which are used to measure or restrict the flow of fluids in pipelines. These flanges feature a tapped hole and set of jack screws for securing the orifice plate in place. Orifice flanges are commonly used in industries such as oil and gas, chemical processing, and water treatment, where precise flow measurement is critical.

Key Features:

  • Tapped hole and jack screws for orifice plate installation.
  • Used for precise flow measurement or restriction.
  • Commonly used in oil and gas, chemical processing, and water treatment industries.

Applications:

  • Flow measurement in pipelines.
  • Flow restriction in process lines.
  • Metering applications in refineries and chemical plants.

Flanges are indispensable components in piping systems, providing a means to connect valves, pipes, and other equipment. The selection of the appropriate flange type depends on various factors such as pressure, temperature, fluid properties, and application requirements. By understanding the characteristics and applications of different types of flanges, engineers and designers can ensure the integrity, reliability, and efficiency of piping systems across a wide range of industries and applications.

For expert guidance on selecting the right flange for your specific requirements or to explore our comprehensive product range, please don’t hesitate to contact the Mcneil Instrument team at +91 9870883613 or via email at info@mcneilinstruments.com. We are dedicated to delivering exceptional quality and service to meet your industrial needs effectively.

Read More
admin0 commentFlanges, flanges manufacturers, flanges suppliers in India, Uncategorized
Pipes
December 20, 2022

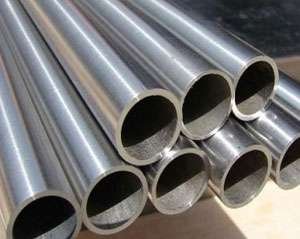

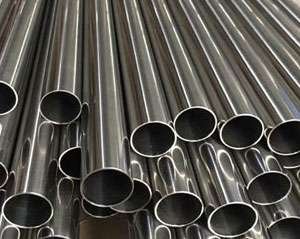

Attributes of Pipes

The pipe, which is used in the piping system to transport liquids, gases, and occasionally solids, is a linear tubular cavity that is pivoted. A pipe is a cylindrical segment or spheroid that is typically but not always circular in cross-section and is utilized for transporting things that can flow, including liquids, gases, sludge, powders, and masses of tiny particulates. Additionally, it can be used for structural purposes because hollow pipe is significantly more rigid per unit weight than solid components.

A sizable portion of any processing plant is covered in pipes. One thing that stands out when you look at the Petrochemical, Refinery, and Oil Exploration complicated is the intricate pipe system. From one piece of apparatus to another, different process ingredients are transported using piping.

A plant is a location where a number of tasks are carried out in a precise sequence in order to transform raw materials into harmless products. Raw materials, intermediate products, and finished goods are all transported to the target site through interrelated pipes and pipe segments. Numerous materials, including metals, alloys, ceramics, glass, fiberglass, concrete, and plastics, are used to make pipes. For the purpose of choosing the elements to be utilized in industrial pipe systems, engineering firms employ materials engineers. The key factors influencing the choice of material are the fluid supply, design pressure, design temperature, and cost, among others.

Pipe Manufacturing

Pipe Manufacturer
Pipe Supplier
Pipes Manufacturing
Pipes exporter

There are typically two different ways to make pipes, and they can either be soldered or seamless. Both techniques begin with the casting of raw materials into alloys. The steel is then transformed into a pipe by being stretched out into a seamless tube or by being forced together and having the edges fuse together. As the name implies, a seamless pipe has no seams or weld joints. A heated solid circular steel “billet” is pushed or pulled over a form until the steel is formed into a hollow pipe, which is how seamless steel pipes are created. The interior dimension of the straight tube is then expanded while the exterior diameter is decreased by extruding it through a die and spindle combination.

Mcneil Instruments is Pipes manufacturing and supplier company in India. Our prime pipe exporting country are :UAE, Bahrain, Italy, Indonesia, Malaysia, United States, China, Brazil, Nigeria, Kuwait, Dubai, Iran, Germany, UK, Canada, Russia, Australia, Sri Lanka, Vietnam, Turkey, New Zealand, South Africa, Kazakhstan, Saudi Arabia etc.

Read More
admin0 commentUncategorized
